Pipe Volume Formula:
Show the calculator\( V = \pi \times r^2 \times L \)
Where:
- \( V \) = volume of the pipe
- \( \pi \) = mathematical constant (approximately 3.14159)
- \( r \) = radius of the pipe (diameter ÷ 2)
- \( L \) = length of the pipe
This formula calculates the internal volume of a cylindrical pipe, which represents the amount of fluid the pipe can hold. It's fundamental in engineering for determining flow capacity, pressure calculations, and system design.
Example: For a pipe with diameter 10 cm and length 100 cm:
Radius: \( r = \frac{10}{2} = 5 \) cm
Volume: \( V = \pi \times 5^2 \times 100 = 3.14159 \times 25 \times 100 \approx 7,854 \) cubic cm
Thus, the pipe can hold approximately 7,854 cubic centimeters of fluid.

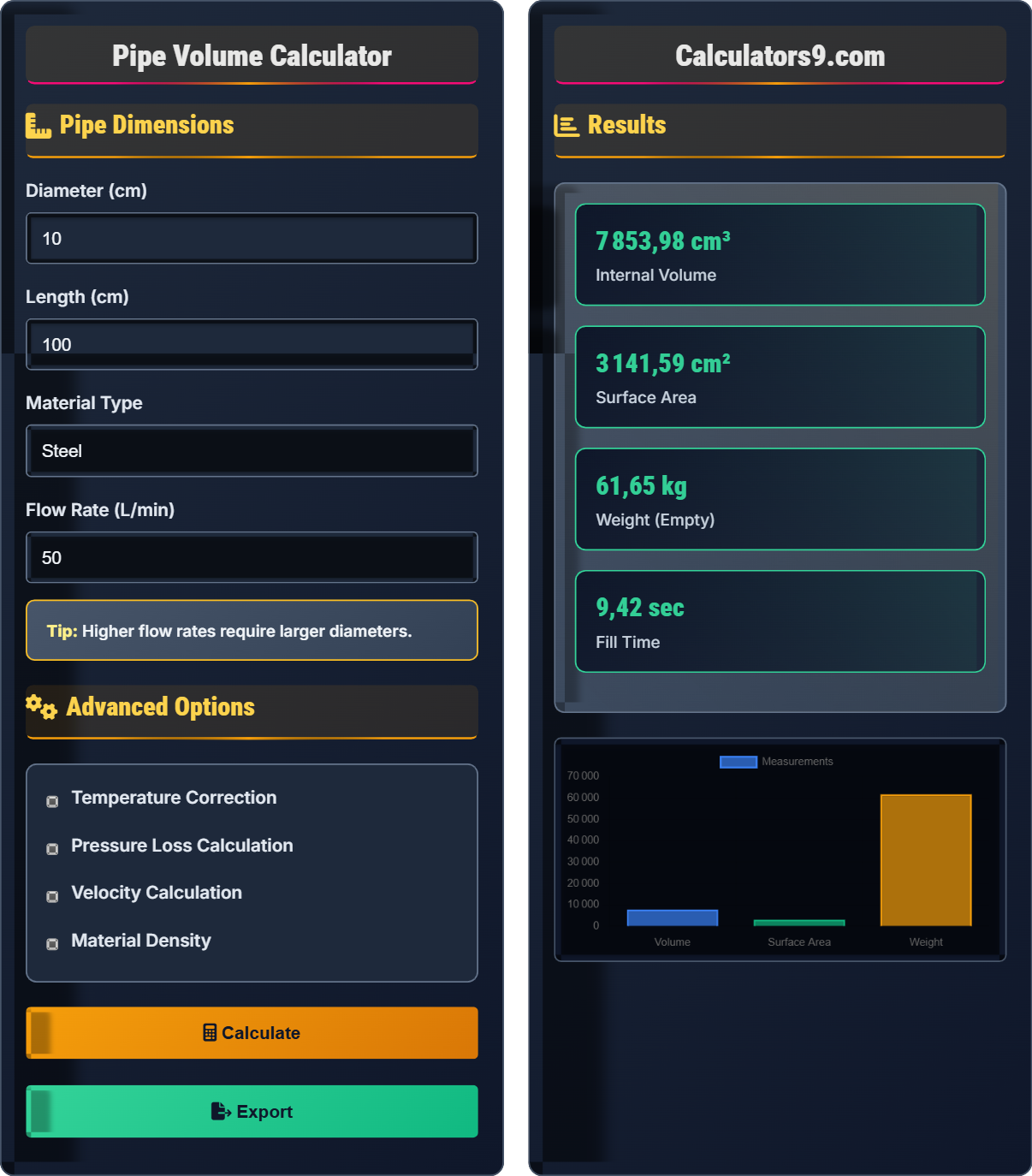

Pipe Dimensions
Advanced Options
Results
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 10.00 | cm |
| Length | 100.00 | cm |
| Volume | 7,854 | cm³ |
| Radius | 5.00 | cm |
| Parameter | Value | Unit |
|---|---|---|
| Surface Area | 3,142 | cm² |
| Weight | 0.00 | kg |
| Fill Time | 157 | seconds |
| Velocity | 0.00 | m/s |
Comprehensive Pipe Volume Guide
Pipe volume refers to the internal capacity of a cylindrical pipe, representing the maximum amount of fluid it can contain. This measurement is crucial in engineering applications for designing piping systems, calculating flow rates, and ensuring proper system operation. The volume determines how much liquid or gas can flow through a pipe at any given time.
The standard pipe volume calculation uses the following formula:
Where:
- \(V\) = Volume of the pipe
- \(\pi\) = Mathematical constant (π ≈ 3.14159)
- \(r\) = Internal radius of the pipe
- \(L\) = Length of the pipe
Pipe volume calculations are essential for various engineering applications:
- Water Distribution: Determining pipe sizing for municipal water systems
- Oil & Gas: Pipeline capacity planning and flow optimization
- Chemical Processing: Ensuring proper reaction vessel connections
- HVAC Systems: Chiller and cooling circuit design
- Fire Protection: Sizing fire sprinkler systems
- Flow Velocity: Maintain velocities between 1-3 m/s to prevent erosion
- Pressure Drop: Account for friction losses in long pipe runs
- Thermal Expansion: Consider temperature effects on pipe dimensions
- Corrosion Allowance: Factor in wall thickness reduction over time
- Safety Factors: Apply appropriate margins for critical applications
Pipe Volume Basics
Internal capacity of a cylindrical pipe representing maximum fluid holding capacity.
\(V = \pi \times r^2 \times L\)
Where V=volume, r=radius, L=length, π≈3.14159.
- Volume increases with square of diameter
- Linear relationship with pipe length
- Material affects weight, not volume
Engineering Applications
Volume of fluid passing through pipe per unit time, affecting pressure and velocity.
- Calculate cross-sectional area
- Determine flow rate
- Apply continuity equation
- Consider friction factors
- Reynolds number affects flow type
- Pressure drop varies with length
- Material roughness impacts efficiency
- Temperature affects fluid properties
Pipe Volume Learning Quiz
If the diameter of a pipe is doubled while keeping the length constant, how does the volume change?
The answer is B) Quadruples. The volume formula is V = π × r² × L. Since radius is half the diameter, doubling the diameter means the radius also doubles. When we square the doubled radius (2r)² = 4r², the volume becomes 4 times larger. This is because volume depends on the square of the radius dimension.
Understanding the relationship between pipe dimensions and volume is crucial in engineering. The squared relationship means that small changes in diameter have significant effects on capacity. This is why pipe sizing is so critical in system design - a 10% increase in diameter results in over 20% increase in cross-sectional area and volume capacity.
Volume: The amount of space inside a 3D object, measured in cubic units
Radius: Half the diameter of a circle or cylinder
Quadratic Relationship: When one variable changes by the square of another
• Volume is proportional to radius squared (V ∝ r²)
• Doubling diameter quadruples the volume
• Linear relationship exists with length (V ∝ L)
• Remember: Volume ∝ d² (diameter squared)
• Use the formula: V = π × r² × L for quick calculations
• Always convert measurements to consistent units
• Confusing linear and quadratic relationships
• Forgetting to halve diameter to get radius
• Mixing different units of measurement
A steel pipe has an outer diameter of 12 cm, inner diameter of 10 cm, and length of 200 cm. Calculate the volume of steel used in the pipe wall and explain how this relates to the pipe's structural integrity.
To find the volume of steel in the pipe wall, we calculate the difference between the outer cylinder volume and the inner cylinder volume:
Outer radius (R) = 12/2 = 6 cm
Inner radius (r) = 10/2 = 5 cm
Length (L) = 200 cm
Outer volume = π × R² × L = π × 6² × 200 = π × 36 × 200 = 22,619.5 cm³
Inner volume = π × r² × L = π × 5² × 200 = π × 25 × 200 = 15,708.0 cm³
Steel volume = Outer volume - Inner volume = 22,619.5 - 15,708.0 = 6,911.5 cm³
This calculation demonstrates the annular region concept in pipe engineering. The wall thickness (difference between outer and inner radii) directly correlates with the pipe's ability to withstand internal pressure. Thicker walls provide greater structural strength but also increase weight and cost. Engineers must balance these factors when selecting pipe specifications for specific applications.
Annular Region: The ring-shaped space between two concentric circles or cylinders
Wall Thickness: The difference between outer and inner radii of a pipe
Structural Integrity: The ability of a structure to maintain its shape under load
• Wall thickness affects pressure rating
• Steel volume determines pipe weight
• Minimum wall thickness ensures safety
• For hollow cylinders: V_wall = π × (R² - r²) × L
• Standard pipes have specified wall thicknesses (schedule numbers)
• Always consider safety factors in structural calculations
• Calculating only the inner volume instead of wall volume
• Confusing diameter with radius in calculations
• Ignoring the importance of wall thickness in design
FAQ
Q: How does temperature affect pipe volume calculations?
A: Temperature affects pipe volume calculations through thermal expansion of the pipe material and changes in the fluid properties. For the pipe itself, materials expand with increasing temperature according to their coefficient of thermal expansion (α).
The change in dimensions can be calculated as: ΔL = α × L₀ × ΔT
Where ΔL is the change in length, α is the thermal expansion coefficient, L₀ is the original length, and ΔT is the temperature change.
For example, steel has α ≈ 12×10⁻⁶ /°C. A 100 cm steel pipe heated from 20°C to 60°C would expand by: ΔL = 12×10⁻⁶ × 100 × 40 = 0.048 cm.
Additionally, the fluid inside expands thermally, potentially changing the effective volume available. Water's coefficient of volumetric expansion β ≈ 2.1×10⁻⁴ /°C, meaning its volume increases by about 0.021% per degree Celsius rise in temperature.
Q: What's the relationship between pipe diameter, flow rate, and pressure loss?
A: The relationship follows the Darcy-Weisbach equation for pressure loss due to friction: ΔP = f × (L/D) × (ρv²/2)
Where ΔP is pressure loss, f is the friction factor, L is pipe length, D is diameter, ρ is fluid density, and v is flow velocity.
Since flow rate Q = A × v (where A is cross-sectional area), and A = π × (D/2)², we have: v = Q/A = Q/(π × (D/2)²)
Substituting velocity back into the pressure loss equation: ΔP = f × (L/D) × (ρ × [Q/(π × (D/2)²)]²)/2
This simplifies to: ΔP ∝ Q²/D⁵
This means pressure loss increases with the square of flow rate and decreases with the fifth power of diameter. Doubling the diameter reduces pressure loss by a factor of 32, while doubling the flow rate increases pressure loss by a factor of 4.
