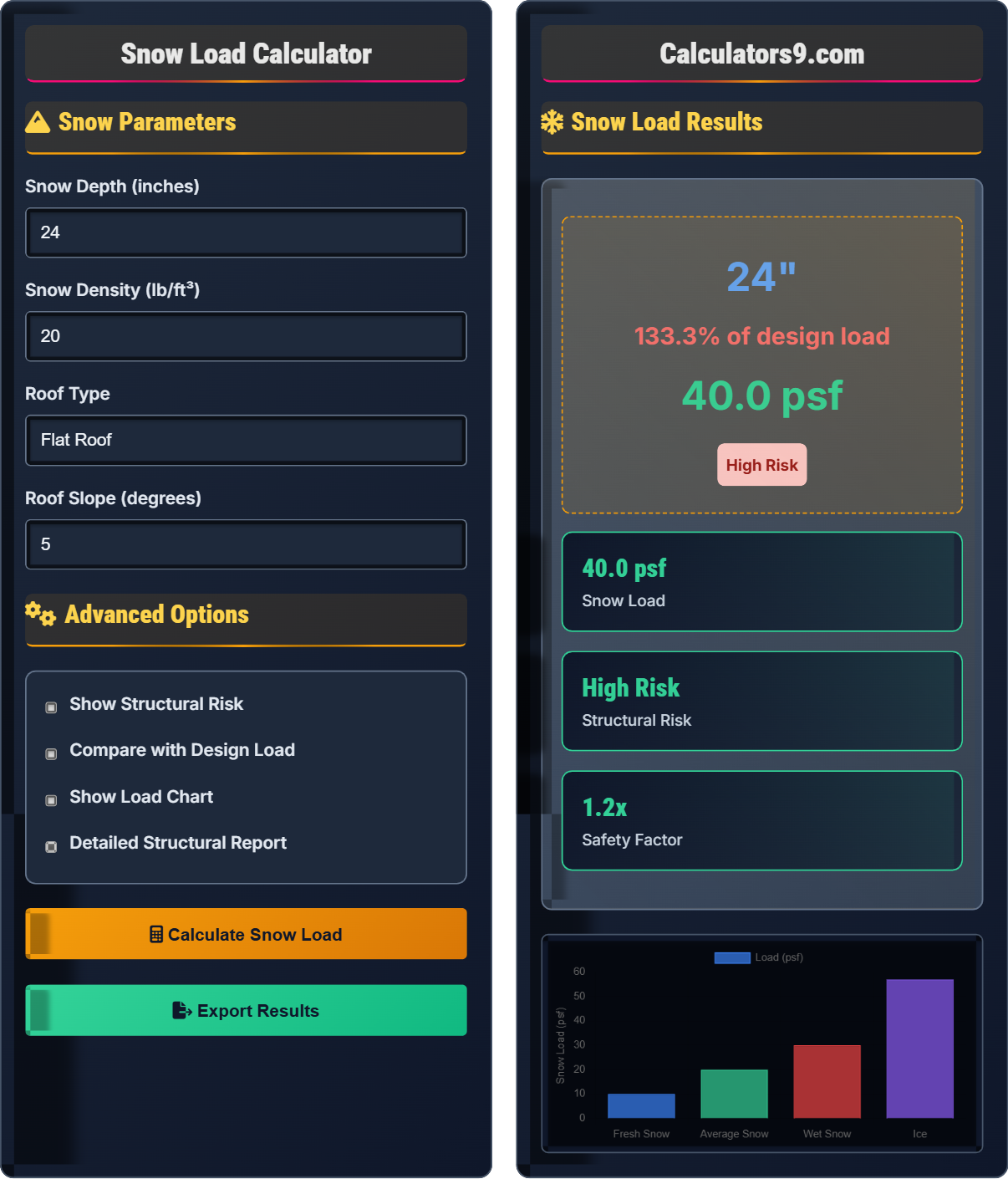

Snow Load Calculator
Accurate snow load • 2026 standards
Snow Parameters
Advanced Options
Snow Load Results
| Metric | Value |
|---|---|
| Snow Depth | 24 inches |
| Snow Density | 20 lb/ft³ |
| Snow Load | 40 psf |
| Roof Slope | 5 degrees |
| Condition | Threshold | Recommendation |
|---|---|---|
| Low | < 20 psf | Minimal concern |
| Moderate | 20-40 psf | Monitor regularly |
| High | 40-60 psf | Consider removal |
| Extreme | > 60 psf | Immediate action |
Snow Load Engineering Guide
Snow load is the downward force exerted by accumulated snow on a structure, typically measured in pounds per square foot (psf). It's a critical consideration in structural engineering, particularly for roofs in snowy climates. Snow loads can vary significantly based on snow depth, density, roof shape, slope, and geographic location.
The basic snow load formula is:
Where:
- \(p_s\) = Snow load in psf
- \(\gamma\) = Snow density in lb/ft³
- \(h\) = Snow depth in feet
Building codes specify minimum design snow loads based on geographic location and historical snowfall data. The American Society of Civil Engineers (ASCE 7) provides guidelines for snow load calculations. Local building codes typically adopt these standards with regional modifications. Structures must be designed to withstand the greater of the ground snow load or the roof snow load.
- Snow Density: Fresh snow (5-15 lb/ft³) vs. wet snow (20-50 lb/ft³)
- Roof Slope: Steeper slopes shed snow more effectively
- Roof Shape: Flat roofs accumulate more snow than sloped roofs
- Wind Effects: Drifting and accumulation patterns
- Thermal Effects: Heat loss melting and refreezing
Snow Load Learning Quiz
What does snow load measure?
The answer is B) The downward force exerted by accumulated snow on a structure. Snow load is the weight of snow pressing down on a surface, typically measured in pounds per square foot (psf). It's a critical structural engineering consideration for roofs and other horizontal surfaces.
Understanding snow load is important because it represents a significant structural force that buildings must be designed to withstand. Unlike simply measuring snow depth, snow load considers the actual weight that affects structural integrity. This weight varies based on snow density, which changes with temperature and moisture content.
Snow Load: Downward force exerted by accumulated snow on a structure
psf: Pounds per square foot, unit of pressure
Structural Force: Physical load that affects building stability
• Snow load is measured in pounds per square foot (psf)
• It depends on both snow depth and density
• Building codes specify minimum design loads
• Remember: Snow load = depth × density
• Wet snow is denser and creates higher loads than fresh snow
• Steeper roofs shed snow more effectively
• Confusing snow depth with snow load
• Assuming all snow has the same density
• Ignoring the effect of roof slope on snow accumulation
Calculate the snow load for 30 inches of snow with a density of 25 lb/ft³. Show your work and explain the significance of this load.
First, convert inches to feet: 30 inches ÷ 12 = 2.5 feet
Apply the formula: \(p_s = \gamma \cdot h = 25 \times 2.5 = 62.5\) psf
This load of 62.5 psf is considered extreme and may exceed the design capacity of many residential structures. Immediate action such as snow removal would be recommended to prevent potential structural failure.
This problem demonstrates the importance of unit conversion in engineering calculations. The result shows how quickly snow loads can reach dangerous levels. At 62.5 psf, this exceeds the typical design load for many residential roofs, highlighting the critical nature of snow load calculations.
psf: Pounds per square foot, standard unit for snow load
Design Load: Maximum load a structure is engineered to withstand
Unit Conversion: Changing units to match formula requirements
• Always convert depth to feet when using the formula
• Residential roofs typically designed for 20-30 psf
• Commercial roofs may be designed for higher loads
• Remember: 1 ft = 12 inches
• Fresh snow: 5-15 lb/ft³, packed snow: 20-30 lb/ft³, ice: 57 lb/ft³
• Most residential roofs designed for 20-30 psf snow load
• Forgetting to convert inches to feet
• Using incorrect density values
• Not considering the design capacity of the structure
A flat commercial roof measures 100 ft × 50 ft. During a winter storm, 18 inches of fresh snow accumulates with a density of 12 lb/ft³. The building was designed for a 30 psf snow load. Calculate the total snow load and assess the structural risk. What recommendations would you make?
Step 1: Convert depth to feet: 18 inches ÷ 12 = 1.5 feet
Step 2: Calculate snow load: \(p_s = 12 \times 1.5 = 18\) psf
Step 3: Calculate total load: 18 psf × (100 × 50) sq ft = 90,000 lbs
Step 4: Risk assessment: 18 psf is below the design load of 30 psf, so the risk is low.
Recommendations: Continue monitoring, no immediate action required.
This example demonstrates the practical application of snow load calculations in structural assessment. The result shows that while the total weight is substantial (90,000 lbs), the distributed load is within design parameters. This illustrates the importance of considering both total weight and distributed load.
Distributed Load: Load spread over an area rather than concentrated
Total Weight: Overall mass of snow on the structure
Design Capacity: Maximum load the structure was engineered to handle
• Compare calculated load to design load, not total weight
• Flat roofs accumulate more snow than sloped roofs
• Continue monitoring during ongoing snowfall
• Always compare distributed load (psf) to design load (psf)
• Flat roofs retain 100% of snow accumulation
• Steep roofs may shed 50-90% of snow
• Comparing total weight to design load instead of psf
• Not accounting for roof slope in snow retention
• Ignoring the difference between distributed and concentrated loads
Compare the snow loads for two different snow conditions: (A) 24 inches of fresh snow at 10 lb/ft³ density, and (B) 12 inches of wet snow at 30 lb/ft³ density. Which condition poses a greater structural risk and why?
Condition A: Convert 24" to feet = 2 ft; Load = 10 × 2 = 20 psf
Condition B: Convert 12" to feet = 1 ft; Load = 30 × 1 = 30 psf
Condition B poses a greater structural risk despite having less depth because the higher density creates a greater distributed load (30 psf vs 20 psf).
This example highlights why snow density is crucial in load calculations. Even with half the depth, wet snow can create a higher load than deeper fresh snow. This demonstrates that depth alone is not sufficient for risk assessment - density must also be considered.
Snow Density: Mass per unit volume of snow
Fresh Snow: Light, low-density snow (5-15 lb/ft³)
Wet Snow: Dense, heavy snow (20-50 lb/ft³)
• Both depth and density affect snow load
• Wet snow is much denser than fresh snow
• Distributed load matters more than total depth
• Fresh powder: 5-10 lb/ft³, packed snow: 15-25 lb/ft³, ice: 57 lb/ft³
• Snow density increases with temperature and time
• Rain-on-snow events create extremely dense snow
• Assuming deeper snow always means higher load
• Not considering changes in snow density over time
• Ignoring the impact of temperature on snow density
According to ASCE 7 standards, what is the primary factor that determines the design snow load for a region?
The answer is B) Historical ground snow load data. ASCE 7 standards use statistical analysis of historical ground snow load measurements to determine the design snow load for different regions. This provides a probabilistic approach to ensure structures can withstand expected snow loads.
This question emphasizes the importance of using standardized engineering codes based on historical data. Building codes ensure that structures are designed to withstand the statistically probable maximum snow loads for their geographic location, providing a safety margin against extreme events.
ASCE 7: American Society of Civil Engineers standard for structural loads
Ground Snow Load: Weight of snow on the ground, basis for roof calculations
Probabilistic Approach: Statistical method for determining design loads
• Building codes are based on historical data
• Ground snow load is the basis for roof calculations
• Codes include safety factors for extreme events
• Check local building codes for specific requirements
• Ground snow load is typically higher than roof load
• Codes account for drift and accumulation patterns
• Assuming all regions have the same snow load requirements
• Not checking updated building codes
• Ignoring site-specific factors like exposure and terrain
Snow Load Basics
Downward force exerted by accumulated snow on structures.
\(p_s = \gamma \cdot h\)
Where \(p_s\)=Snow load, γ=density, h=depth in feet.
- Measured in pounds per square foot (psf)
- Depends on depth and density
- Flat roofs retain more snow
Factors
Light: <20 psf, Moderate: 20-40 psf, Heavy: 40-60 psf, Extreme: >60 psf.
- Snow density
- Roof slope
- Roof shape
- Wind effects
- Building codes specify minimum loads
- ASCE 7 provides guidelines
- Local variations apply
- Safety margins are critical
FAQ
Q: How does roof slope affect snow load?
A: Steeper slopes shed snow more effectively. Roofs with slope >30° shed most snow. Slopes <5° retain full load. Slopes 5-30° retain partial load.
Q: When should I remove snow from my roof?
A: Consider removal when snow load exceeds 30 psf. For typical homes, this is around 18-24" of average snow density. Consult professionals for older structures.
