Function Plotter
Mathematical visualization tool • 2026 standards
Function Plotting Formulas:
Show the calculator\( f(x) = ax^n + bx^{n-1} + ... + c \)
Where:
- \( f(x) \) = Function output
- \( a, b, c \) = Coefficients
- \( n \) = Degree of polynomial
- \( x \) = Independent variable
Common Functions:
- Linear: \( f(x) = mx + b \)
- Quadratic: \( f(x) = ax^2 + bx + c \)
- Trigonometric: \( f(x) = \sin(x), \cos(x), \tan(x) \)
- Exponential: \( f(x) = a^x \)
- Logarithmic: \( f(x) = \log_a(x) \)
Analysis Tools:
- Derivative: \( f'(x) = \lim_{h \to 0} \frac{f(x+h) - f(x)}{h} \)
- Integral: \( F(x) = \int f(x) dx \)
- Roots: Values where \( f(x) = 0 \)
- Intersections: Points where functions meet
These formulas describe relationships between variables and their rates of change.

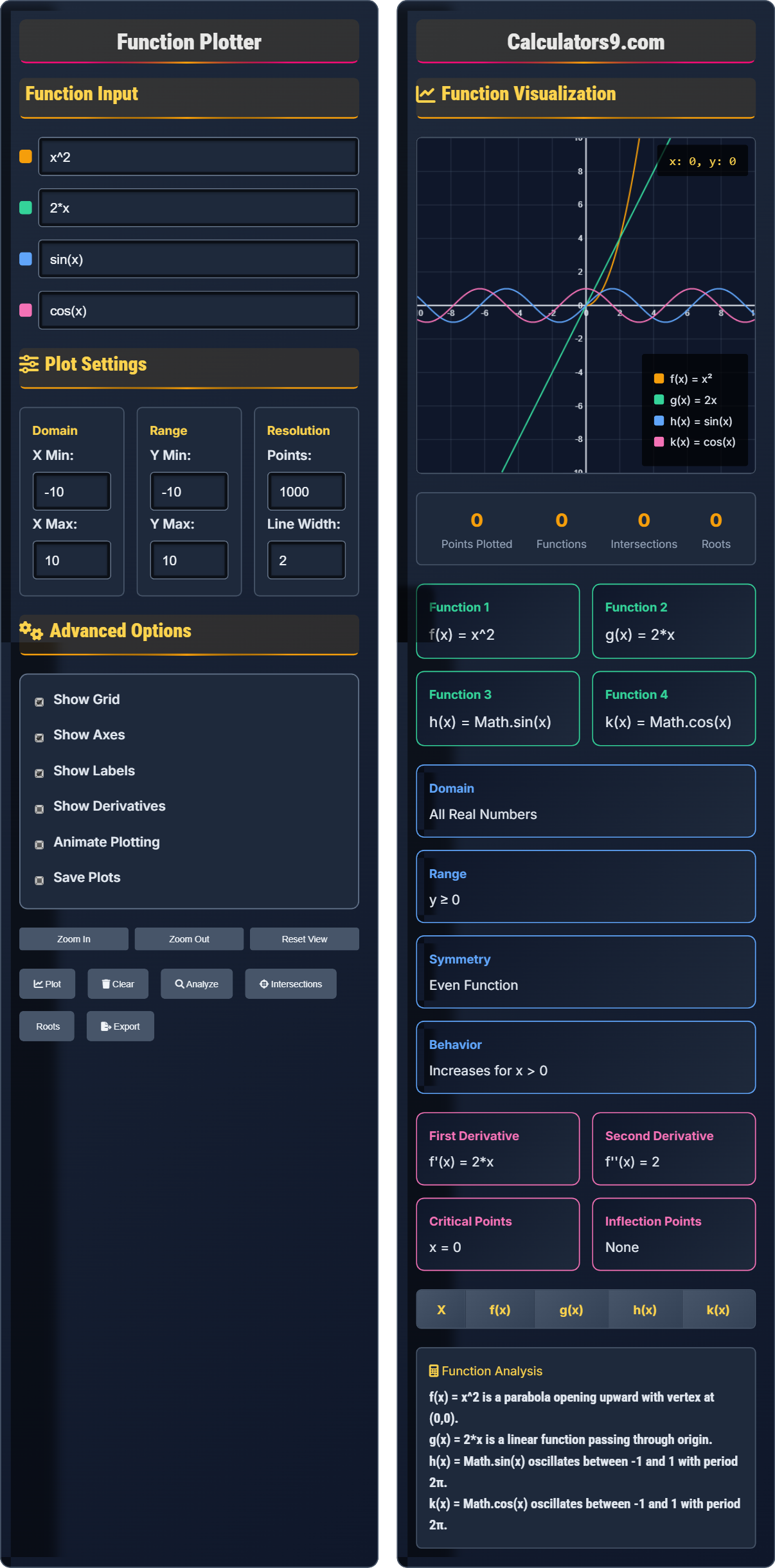

Function Input
Plot Settings
Advanced Options
Function Visualization
| X | f(x) | g(x) | h(x) | k(x) |
|---|
g(x) = 2x is a linear function passing through origin.
h(x) = sin(x) oscillates between -1 and 1 with period 2π.
k(x) = cos(x) oscillates between -1 and 1 with period 2π.
Function Plotting Fundamentals
Function plotting is the process of visualizing mathematical functions by mapping input-output pairs (x, f(x)) onto a coordinate plane. It helps analyze function behavior, properties, and relationships.
\( f(x) = ax^n + bx^{n-1} + ... + c \)
Where f(x) is the dependent variable, coefficients determine shape, and x is the independent variable.
- Domain and range of functions
- Intercepts and asymptotes
- Increasing/decreasing intervals
- Concavity and inflection points
- Symmetry properties
Advanced Features
Function plotters can perform derivatives, integrals, intersections, roots, and transformations. These operations help analyze function behavior and solve equations graphically.
- Derivative analysis for slopes
- Integral calculation for areas
- Intersection finding for solutions
- Root finding for zeros
- Curve fitting for data
- Choose appropriate viewing windows
- Verify with analytical methods
- Check for domain restrictions
- Look for discontinuities
- Validate with known points
Function Plotting Learning Quiz
What does the derivative of a function represent graphically?
The answer is B) The slope of the tangent line. The derivative f'(x) represents the instantaneous rate of change of the function at any point x, which geometrically corresponds to the slope of the tangent line to the curve at that point.
The derivative is a fundamental concept in calculus that measures how a function changes as its input changes. Graphically, it represents the steepness of the curve at any given point. When f'(x) > 0, the function is increasing; when f'(x) < 0, the function is decreasing; and when f'(x) = 0, the function has a horizontal tangent.
Derivative: Rate of change of a function with respect to its variable
Tangent Line: Line that touches a curve at a single point
Instantaneous Rate: Rate of change at a specific point
• f'(x) > 0 means function is increasing
• f'(x) < 0 means function is decreasing
• f'(x) = 0 means horizontal tangent
• The derivative graph shows the slope of the original function
• Peaks and valleys of original function correspond to zeros in derivative
• Concavity relates to the second derivative
• Confusing derivative with integral
• Thinking derivative gives area under curve
• Misinterpreting slope signs
Find the derivative of f(x) = 4x³ - 3x² + 2x - 1 using the power rule.
Using the power rule: \( \frac{d}{dx}[x^n] = nx^{n-1} \)
Step 1: \( \frac{d}{dx}[4x^3] = 4 \times 3x^{3-1} = 12x^2 \)
Step 2: \( \frac{d}{dx}[-3x^2] = -3 \times 2x^{2-1} = -6x \)
Step 3: \( \frac{d}{dx}[2x] = 2 \times 1x^{1-1} = 2 \)
Step 4: \( \frac{d}{dx}[-1] = 0 \) (constant rule)
Therefore, f'(x) = 12x² - 6x + 2
The power rule is fundamental for differentiating polynomial functions. It states that when differentiating x raised to any power, you bring down the power as a coefficient and reduce the exponent by one. This rule, combined with the constant multiple rule and sum rule, allows differentiation of any polynomial.
Power Rule: d/dx[x^n] = nx^(n-1)
Constant Rule: Derivative of constant is zero
Polynomial: Sum of terms with non-negative integer powers
• Bring down the exponent as coefficient
• Subtract 1 from the exponent
• Constants differentiate to zero
• Apply the rule to each term separately
• Remember that x⁰ = 1
• Check your answer by verifying units
• Forgetting to subtract 1 from exponent
• Not bringing down the exponent as coefficient
• Incorrectly differentiating constants
Find the intersection points of f(x) = x² and g(x) = x + 2 by solving the equation f(x) = g(x).
Step 1: Set functions equal: x² = x + 2
Step 2: Rearrange: x² - x - 2 = 0
Step 3: Factor: (x - 2)(x + 1) = 0
Step 4: Solve: x = 2 or x = -1
Step 5: Find y-coordinates: f(2) = 2² = 4 and f(-1) = (-1)² = 1
Step 6: Verify: g(2) = 2 + 2 = 4 ✓ and g(-1) = -1 + 2 = 1 ✓
Therefore, intersection points are (2, 4) and (-1, 1).
Intersection points occur where two functions have the same output for the same input. Setting f(x) = g(x) finds x-values where this occurs. Substituting back into either function gives the corresponding y-values. Graphically, these are the points where the curves cross.
Intersection Point: Point where two functions have same coordinates
System of Equations: Multiple equations to solve simultaneously
Algebraic Solution: Using algebra to find exact values
• Set functions equal to find x-coordinates
• Substitute back to find y-coordinates
• Verify solutions in original equations
• Factor polynomials when possible
• Use quadratic formula for quadratics
• Graph to verify solutions
• Only solving for x and forgetting y
• Factoring errors
• Not checking solutions
What are the amplitude, period, and phase shift of the function f(x) = 2sin(3x - π/4)?
For f(x) = A sin(Bx + C):
• Amplitude = |A| = |2| = 2
• Period = 2π/|B| = 2π/|3| = 2π/3
• Phase shift = -C/B = -(-π/4)/3 = π/12
• Vertical shift = 0 (no D term)
Therefore, amplitude is 2, period is 2π/3, and phase shift is π/12 to the right.
Trigonometric functions have specific parameters that define their shape. The amplitude determines the vertical stretch, the period determines how frequently the function repeats, and the phase shift determines horizontal displacement. Understanding these parameters helps predict function behavior.
Amplitude: Maximum displacement from equilibrium
Period: Length of one complete cycle
Phase Shift: Horizontal displacement of the function
• Amplitude = |coefficient of trig function|
• Period = 2π/|coefficient of x|
• Phase shift = -constant term/coefficient of x
• Rewrite function in standard form first
• Factor out coefficient of x when needed
• Use unit circle for verification
• Confusing amplitude with period
• Forgetting to divide by coefficient of x for period
• Incorrectly calculating phase shift
What is the domain and range of f(x) = √(4 - x²)?
The answer is A) Domain: [-2,2], Range: [0,2]. For the square root to be defined, the expression under the radical must be non-negative: 4 - x² ≥ 0, so x² ≤ 4, which gives -2 ≤ x ≤ 2. The maximum value occurs at x = 0, giving f(0) = √4 = 2, so the range is [0,2].
The domain of a function consists of all valid input values, while the range consists of all possible output values. For radical functions, the radicand (expression under the radical) must be non-negative. For f(x) = √(4 - x²), the expression 4 - x² represents a semicircle with radius 2 centered at the origin.
Domain: Set of all possible input values
Range: Set of all possible output values
Radicand: Expression under the radical symbol
• Radicand must be ≥ 0 for even roots
• Consider function restrictions
• Graph function to visualize domain/range
• Set radicand ≥ 0 to find domain
• Consider function behavior for range
• Graph function to verify
• Forgetting to consider radicand restrictions
• Confusing domain with range
• Not considering function behavior
FAQ
Q: How do I analyze the behavior of a function using its derivative?
A: The derivative f'(x) reveals the behavior of function f(x). When f'(x) > 0, f(x) is increasing; when f'(x) < 0, f(x) is decreasing; and when f'(x) = 0, f(x) has critical points.
Using the formula \( f'(x) = \lim_{h \to 0} \frac{f(x+h) - f(x)}{h} \), we can determine:
• Critical points: where f'(x) = 0
• Local extrema: maxima/minima at critical points
• Concavity: using second derivative f''(x)
• Inflection points: where concavity changes
Function plotters can visualize these relationships graphically.
Q: What's the difference between function plotters and symbolic math systems?
A: Function plotters focus on visualizing functions by calculating and displaying discrete points. They excel at showing function behavior, trends, and relationships.
Symbolic math systems (like Mathematica or Maple) perform algebraic manipulation, solving equations exactly, and deriving formulas symbolically.
For example, a function plotter might approximate \( \int_0^1 x^2 dx \) numerically as 0.3333, while a symbolic system would give the exact answer of 1/3.
Both approaches are complementary in mathematical analysis.
