Ohm's Law Calculator
Physics & Engineering Tool • Electrical Calculations
Ohm's Law Formula:
Show the calculator\( V = I \times R \)
\( I = \frac{V}{R} \)
\( R = \frac{V}{I} \)
\( P = V \times I \)
Where:
- \( V \) = Voltage (volts)
- \( I \) = Current (amps)
- \( R \) = Resistance (ohms)
- \( P \) = Power (watts)
Ohm's Law states that the current through a conductor is directly proportional to the voltage across it and inversely proportional to the resistance. This fundamental law governs electrical circuit behavior.
Example: A circuit with 12 volts and 4 ohms resistance:
\( I = \frac{V}{R} = \frac{12}{4} = 3 \) amps
\( P = V \times I = 12 \times 3 = 36 \) watts
Thus, the circuit draws 3 amps of current and consumes 36 watts of power.

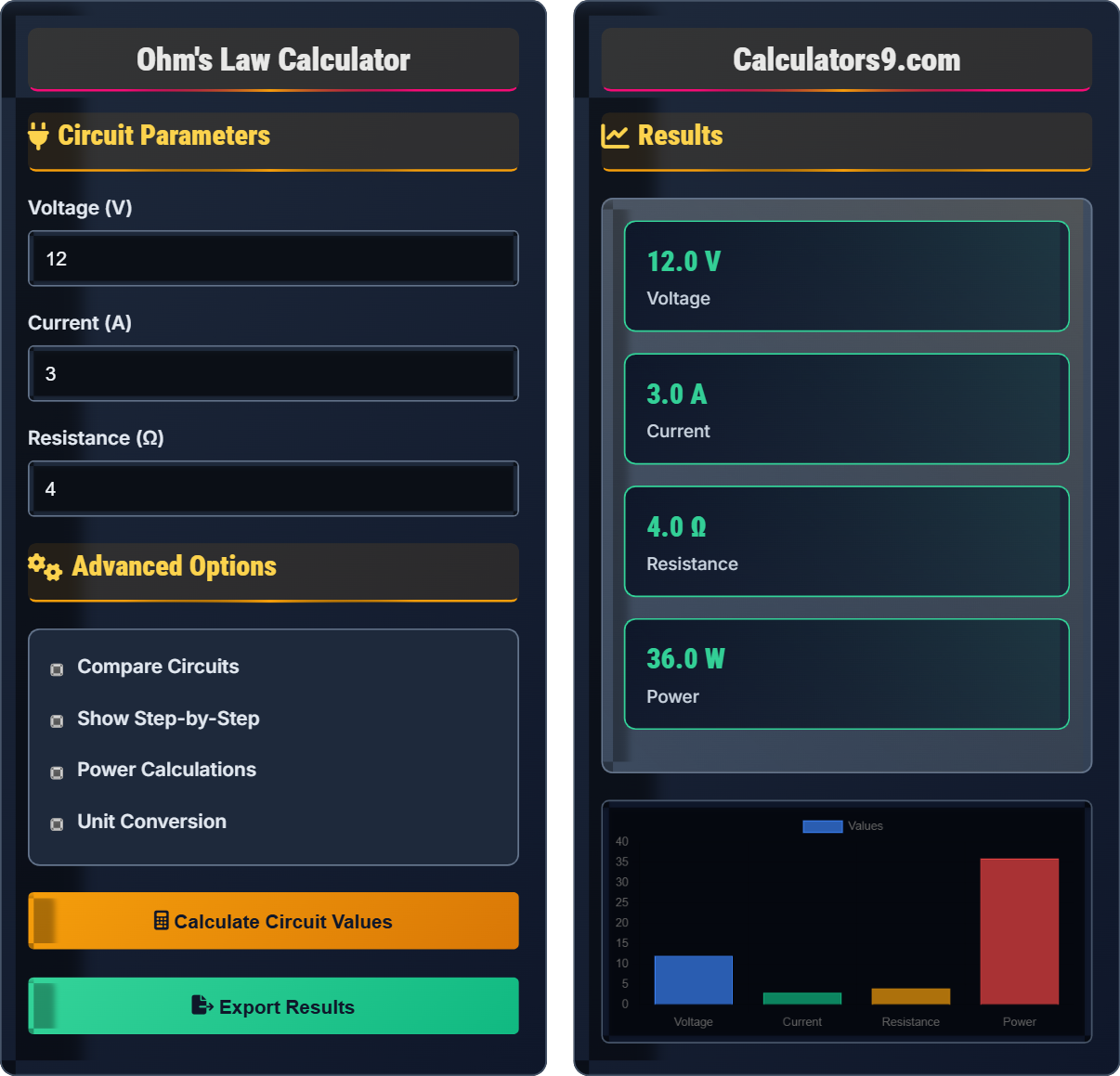

Circuit Parameters
Advanced Options
Results
| Parameter | Value | Unit |
|---|---|---|
| Voltage | 12.0 | V |
| Current | 3.0 | A |
| Resistance | 4.0 | Ω |
| Power | 36.0 | W |
| Conductance | 0.25 | S |
| Circuit | Voltage (V) | Current (A) | Resistance (Ω) | Power (W) |
|---|---|---|---|---|
| Circuit 1 | 12.0 | 3.0 | 4.0 | 36.0 |
| Circuit 2 | 9.0 | 2.0 | 4.5 | 18.0 |
Power dissipation in the circuit is calculated using multiple formulas:
- P = V × I = 12.0 × 3.0 = 36.0 W
- P = I² × R = 3.0² × 4.0 = 36.0 W
- P = V² ÷ R = 12.0² ÷ 4.0 = 36.0 W
Energy consumed in 1 hour: 36.0 Wh
Energy consumed in 1 day: 0.864 kWh
Ohm's Law Fundamentals
Ohm's Law is a fundamental principle in electrical engineering that describes the relationship between voltage, current, and resistance in an electrical circuit. It states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to the resistance.
The fundamental formulas for Ohm's Law are:
\(I = \frac{V}{R}\)
\(R = \frac{V}{I}\)
\(P = V \times I\)
Where:
- \(V\) = voltage (volts)
- \(I\) = current (amps)
- \(R\) = resistance (ohms)
- \(P\) = power (watts)
Ohm's Law calculations are essential in numerous fields:
- Electronics: Circuit design, component selection, troubleshooting
- Power Systems: Load calculations, transmission line analysis
- Telecommunications: Signal processing, impedance matching
- Automotive: Vehicle electrical systems, battery management
- Calculating resistor values for LED circuits
- Determining wire gauge for electrical installations
- Designing voltage dividers for sensor circuits
- Calculating power consumption of electrical devices
Ohm's Law Concepts
Ohm's Law: Current is proportional to voltage and inversely proportional to resistance.
\(V = I \times R\)
\(I = \frac{V}{R}\)
\(R = \frac{V}{I}\)
\(P = V \times I\)
Where V=voltage, I=current, R=resistance, P=power.
- Voltage ∝ Current (constant resistance)
- Current ∝ 1/Resistance (constant voltage)
- Applies to linear circuits only
Applications
P = V×I = I²×R = V²/R
- Identify known parameters
- Select appropriate formula
- Substitute values
- Solve for unknown
- Temperature affects resistance
- Non-linear components violate Ohm's Law
- DC and AC applications differ
- Internal resistance of sources matters
Ohm's Law Learning Quiz
If the voltage across a resistor is doubled while the resistance remains constant, what happens to the current?
The answer is B) It doubles. According to Ohm's Law (I = V/R), when voltage is doubled and resistance remains constant, the current also doubles. This demonstrates the direct proportionality between current and voltage when resistance is held constant.
This question tests the understanding of the direct relationship between voltage and current in Ohm's Law. When we hold resistance constant, current changes by the same factor as voltage. This is a fundamental concept in electrical engineering that applies to all ohmic materials and linear circuits.
Ohm's Law: Relationship between voltage, current, and resistance
Direct Proportionality: As one quantity increases, the other increases by the same factor
Ohmic Material: Material that follows Ohm's Law
• I = V/R (when R is constant)
• Current ∝ Voltage (direct relationship)
• Resistance ∝ 1/Current (inverse relationship)
• Remember: V = I×R triangle (cover what you want to find)
• Direct relationships: if one doubles, the other doubles
• Assuming current and voltage are inversely related
• Forgetting that resistance must be constant
A light bulb operates at 120 volts and draws 0.5 amperes of current. Calculate the resistance of the bulb, the power it consumes, and the energy it would use in 8 hours of operation.
Step 1: Calculate resistance using Ohm's Law
R = V/I = 120/0.5 = 240 Ω
Step 2: Calculate power consumption
P = V×I = 120×0.5 = 60 W
Step 3: Calculate energy consumption in 8 hours
Energy = Power × Time = 60 W × 8 h = 480 Wh
Energy = 480 Wh ÷ 1000 = 0.48 kWh
The light bulb has a resistance of 240 ohms, consumes 60 watts of power, and uses 0.48 kilowatt-hours of energy in 8 hours of operation.
This problem demonstrates practical applications of Ohm's Law and power calculations. The resistance value represents the opposition to current flow in the filament. The power calculation shows the rate of energy conversion from electrical to light and heat energy. The energy calculation is important for utility billing and energy management.
Power: Rate of energy conversion (watts)
Energy: Total work done over time (watt-hours)
kWh: Kilowatt-hour, common energy billing unit
• R = V/I (Ohm's Law)
• P = V×I (Power formula)
• Energy = Power × Time
• Always check units match in calculations
• Convert to consistent units (kWh for billing)
• Power is instantaneous, energy is over time
• Confusing power (rate) with energy (total amount)
• Forgetting to convert hours to seconds for some calculations
• Mixing up voltage and current in formulas
FAQ
Q: Does Ohm's Law apply to all electrical components?
A: No, Ohm's Law only applies to linear, bilateral, and time-invariant components. These are called "ohmic" materials. Examples include resistors, copper wires, and carbon resistors.
Components that do NOT follow Ohm's Law include:
- Diodes: Have exponential voltage-current relationships
- Transistors: Non-linear control elements
- Thermistors: Resistance changes with temperature
- Inductors/Capacitors: Behave differently in AC circuits
For non-linear components, we use characteristic curves and piecewise linear approximations instead of simple proportional relationships.
Q: How do Ohm's Law calculations apply to real-world engineering problems?
Can you provide examples of how these concepts are used in practice?
A: Ohm's Law is fundamental in electrical engineering applications:
- Circuit Design: Determining resistor values for biasing, current limiting
- Power Distribution: Calculating wire sizes, voltage drops
- Safety Systems: Ground fault detection, overcurrent protection
- Instrumentation: Sensor signal conditioning, measurement circuits
For example, when designing a voltage divider circuit, engineers use Ohm's Law to calculate the ratio of resistances needed to achieve the desired output voltage. In power distribution, Ohm's Law helps determine the appropriate wire gauge to minimize voltage drop over long distances.
