Projectile Motion Equations:
Show the calculator\( x = v_0 \cos(\theta) t \)
\( y = v_0 \sin(\theta) t - \frac{1}{2}gt^2 \)
\( R = \frac{v_0^2 \sin(2\theta)}{g} \)
\( H = \frac{v_0^2 \sin^2(\theta)}{2g} \)
Where:
- \( R \) = horizontal range (m)
- \( H \) = maximum height (m)
- \( v_0 \) = initial velocity (m/s)
- \( \theta \) = launch angle (degrees)
- \( g \) = gravitational acceleration (9.8 m/s²)
- \( t \) = time (s)
These equations describe the parabolic trajectory of projectiles under constant gravitational acceleration, neglecting air resistance.
Example: A projectile launched at 30 m/s at 45°:
\( R = \frac{30^2 \sin(90°)}{9.8} = 91.8 \) m
\( H = \frac{30^2 \sin^2(45°)}{2 \times 9.8} = 22.9 \) m
Thus, the projectile travels 91.8 meters horizontally and reaches 22.9 meters maximum height.

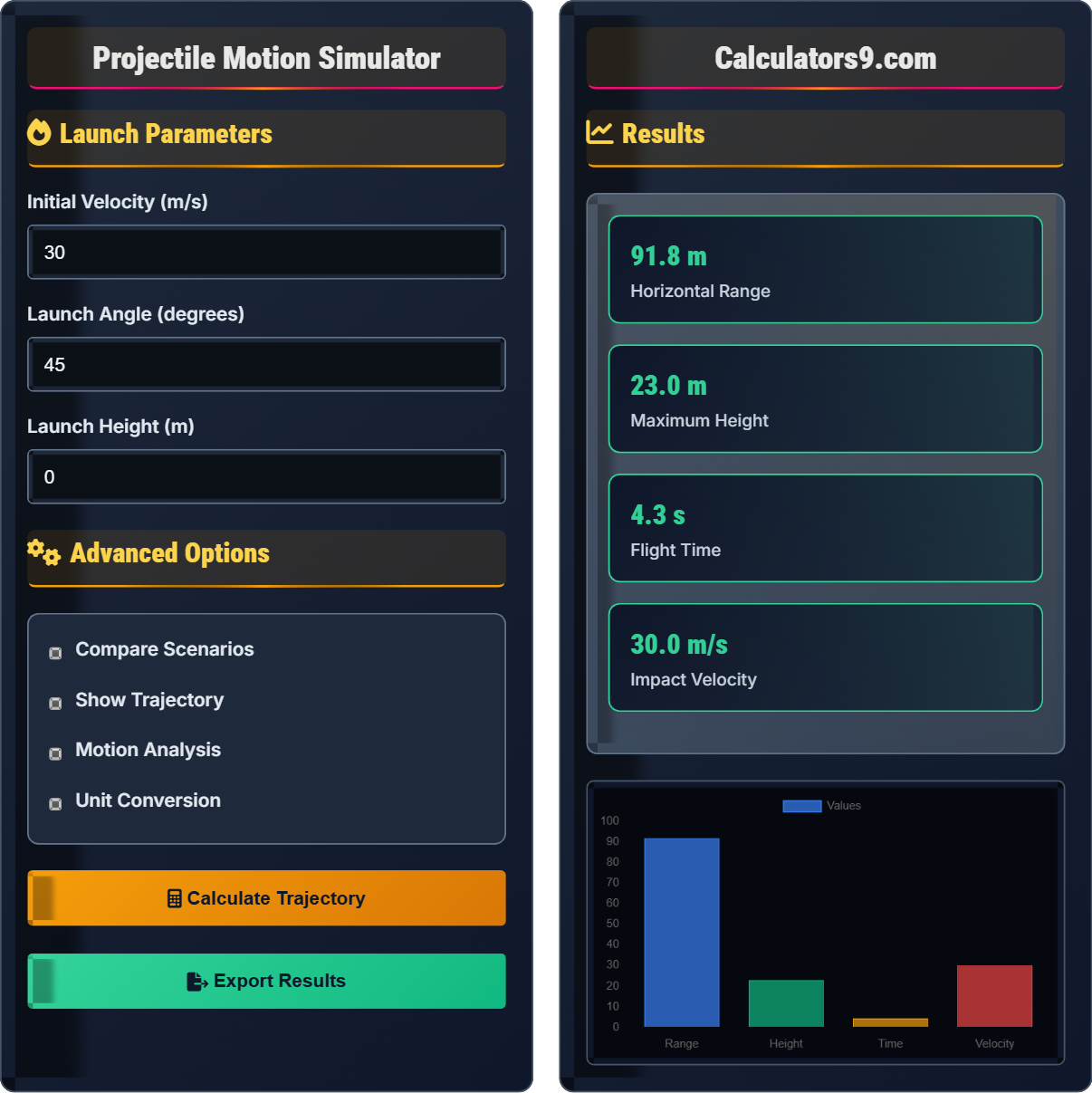

Launch Parameters
Advanced Options
Results
| Parameter | Value | Unit |
|---|---|---|
| Range | 91.8 | m |
| Max Height | 22.9 | m |
| Flight Time | 4.3 | s |
| Impact Velocity | 30.0 | m/s |
| Max Range Angle | 45.0 | ° |
| Scenario | Vel. (m/s) | Angle (°) | Range (m) | Height (m) | Time (s) |
|---|---|---|---|---|---|
| Scenario 1 | 30.0 | 45.0 | 91.8 | 22.9 | 4.3 |
| Scenario 2 | 25.0 | 30.0 | 55.2 | 7.9 | 2.5 |
Based on the calculated trajectory with 30 m/s initial velocity at 45° angle, the projectile achieves optimal range. The parabolic trajectory reaches maximum height at 22.9 meters after 2.15 seconds, then descends for another 2.15 seconds to land 91.8 meters away.
Key insights:
- Optimal angle for maximum range: 45°
- Flight time: 4.3 seconds
- Impact velocity: Equal to launch velocity (ignoring air resistance)
- Range-to-height ratio: Approximately 4:1
Projectile Motion Fundamentals
Projectile motion is the motion of an object thrown or projected into the air, subject only to the acceleration of gravity. The object is called a projectile, and its path is called its trajectory. This motion can be analyzed independently in horizontal and vertical directions.
The fundamental equations for projectile motion are:
\(y = v_0 \sin(\theta) t - \frac{1}{2}gt^2\)
\(R = \frac{v_0^2 \sin(2\theta)}{g}\)
\(H = \frac{v_0^2 \sin^2(\theta)}{2g}\)
Where:
- \(R\) = horizontal range (m)
- \(H\) = maximum height (m)
- \(v_0\) = initial velocity (m/s)
- \(\theta\) = launch angle (radians)
- \(g\) = gravitational acceleration (9.8 m/s²)
- \(t\) = time (s)
Projectile motion calculations are essential in numerous fields:
- Sports: Ballistics, golf, baseball, football trajectories
- Military: Artillery, missile guidance, ballistics
- Engineering: Aircraft design, rocket trajectories, water fountain design
- Physics: Space missions, planetary motion, celestial mechanics
- Basketball shot following a parabolic arc
- Cannonball trajectory in historical warfare
- Space shuttle reentry trajectory
- Water fountain streams forming parabolic paths
Projectile Motion Concepts
Projectile motion is the motion of an object under gravity after being launched with an initial velocity.
\(x = v_0 \cos(\theta) t\)
\(y = v_0 \sin(\theta) t - \frac{1}{2}gt^2\)
\(R = \frac{v_0^2 \sin(2\theta)}{g}\)
\(H = \frac{v_0^2 \sin^2(\theta)}{2g}\)
Where x,y=position, v₀=initial velocity, θ=angle, g=gravity, t=time.
- Optimal range at 45° angle
- Horizontal velocity remains constant
- Vertical acceleration is constant (g)
Applications
Maximum range occurs at launch angle of 45° for level ground.
- Resolve velocity into x and y components
- Analyze horizontal motion (constant velocity)
- Analyze vertical motion (constant acceleration)
- Combine to get trajectory
- Gravity: g = 9.8 m/s² (Earth)
- Optimal angle: 45° for maximum range
- Air resistance: ignored in basic models
- Impact velocity: same as launch velocity (level ground)
Projectile Motion Learning Quiz
For maximum horizontal range on level ground, what launch angle should be used?
The answer is B) 45°. The horizontal range formula is R = (v₀² sin(2θ))/g. The maximum value of sin(2θ) occurs when 2θ = 90°, which means θ = 45°. At this angle, sin(2θ) = sin(90°) = 1, giving the maximum possible range for a given initial velocity.
This demonstrates the mathematical optimization of projectile motion. The range equation R = (v₀² sin(2θ))/g shows that range depends on the sine of twice the angle. Since the maximum value of sine is 1, this occurs when 2θ = 90°, so θ = 45°. This is why 45° is the optimal angle for maximum range.
Projectile Motion: Motion under gravity only
Range: Horizontal distance traveled
Optimal Angle: Angle giving maximum range
• Maximum range at 45° angle
• Range = (v₀² sin(2θ))/g
• Symmetrical trajectory
• Remember: sin(90°) = 1 (maximum)
• 2θ = 90° → θ = 45°
• Assuming 90° gives maximum range (it gives max height)
• Forgetting the 2θ in the range formula
A soccer player kicks a ball at 20 m/s at an angle of 30° from the ground. Calculate the maximum height reached, the horizontal range, and the total flight time. Assume the ball lands at the same height it was kicked from.
Given:
Initial velocity (v₀) = 20 m/s
Launch angle (θ) = 30°
Gravitational acceleration (g) = 9.8 m/s²
Step 1: Calculate maximum height using H = (v₀² sin²(θ))/(2g)
H = (20² × sin²(30°))/(2 × 9.8)
H = (400 × (0.5)²)/(19.6)
H = (400 × 0.25)/19.6 = 5.1 m
Step 2: Calculate horizontal range using R = (v₀² sin(2θ))/g
R = (20² × sin(60°))/9.8
R = (400 × 0.866)/9.8 = 35.3 m
Step 3: Calculate total flight time using T = (2v₀ sin(θ))/g
T = (2 × 20 × sin(30°))/9.8
T = (40 × 0.5)/9.8 = 2.0 s
The ball reaches a maximum height of 5.1 meters, travels 35.3 meters horizontally, and remains in the air for 2.0 seconds.
This problem demonstrates the use of projectile motion equations for a real-world scenario. The key insight is that we can treat horizontal and vertical motions independently. The maximum height occurs when vertical velocity becomes zero, and the total flight time is twice the time to reach maximum height due to symmetry.
Flight Time: Total time in air
Horizontal Range: Distance traveled horizontally
Maximum Height: Highest point in trajectory
• H = (v₀² sin²(θ))/(2g) - max height formula
• R = (v₀² sin(2θ))/g - range formula
• T = (2v₀ sin(θ))/g - flight time formula
• Use sin(2θ) = 2sin(θ)cos(θ) for range calculations
• Flight time is symmetric (up = down time)
• Vertical velocity = 0 at max height
• Forgetting to convert degrees to radians in calculator
• Using wrong trigonometric functions
• Mixing up sin²(θ) and sin(2θ)
FAQ
Q: Why is the horizontal velocity constant in projectile motion?
A: In ideal projectile motion (neglecting air resistance), there is no horizontal force acting on the projectile after it is launched. According to Newton's First Law, an object in motion continues in motion with the same speed and in the same direction unless acted upon by an unbalanced force.
Since gravity acts only in the vertical direction, it has no component in the horizontal direction. Therefore, the horizontal component of velocity remains constant throughout the flight. The vertical component, however, changes due to gravitational acceleration.
Mathematically, if we resolve the initial velocity v₀ into components: vₓ = v₀ cos(θ) and vᵧ = v₀ sin(θ), only vᵧ changes over time while vₓ remains constant.
Q: How do projectile motion calculations apply to real-world engineering problems?
Can you provide examples of how these concepts are used in practice?
A: Projectile motion calculations are fundamental in engineering applications:
- Ballistics: Artillery shells, missile trajectories, gunnery systems
- Aerospace: Rocket trajectories, satellite launches, reentry paths
- Construction: Water fountain design, firework displays, safety barriers
- Sports: Golf ball trajectory optimization, javelin throw analysis
For example, when designing a water fountain, engineers calculate the required nozzle velocity and angle to achieve desired water patterns and heights while ensuring the water returns to the basin safely. Similarly, artillery officers use projectile motion to calculate firing angles for target hits.
