Series Resistor Calculator
Physics & Engineering Tool • Electrical Calculations
Series Resistor Formula:
Show the calculator\( R_{total} = R_1 + R_2 + R_3 + ... + R_n \)
\( V_i = I \times R_i \)
\( I = \frac{V_{total}}{R_{total}} \)
Where:
- \( R_{total} \) = total resistance in series (Ω)
- \( R_i \) = individual resistor value (Ω)
- \( V_i \) = voltage drop across resistor i (V)
- \( I \) = current through circuit (A)
- \( V_{total} \) = total applied voltage (V)
In a series circuit, resistors are connected end-to-end, and the total resistance is the sum of all individual resistances. Current is the same through all resistors, but voltage divides proportionally.
Example: Three resistors in series: R₁=10Ω, R₂=20Ω, R₃=30Ω
\( R_{total} = 10 + 20 + 30 = 60 \) Ω
If V_total = 12V, then I = 12/60 = 0.2A
V₁ = 0.2 × 10 = 2V, V₂ = 0.2 × 20 = 4V, V₃ = 0.2 × 30 = 6V
Thus, total resistance is 60Ω and voltage drops are 2V, 4V, and 6V.

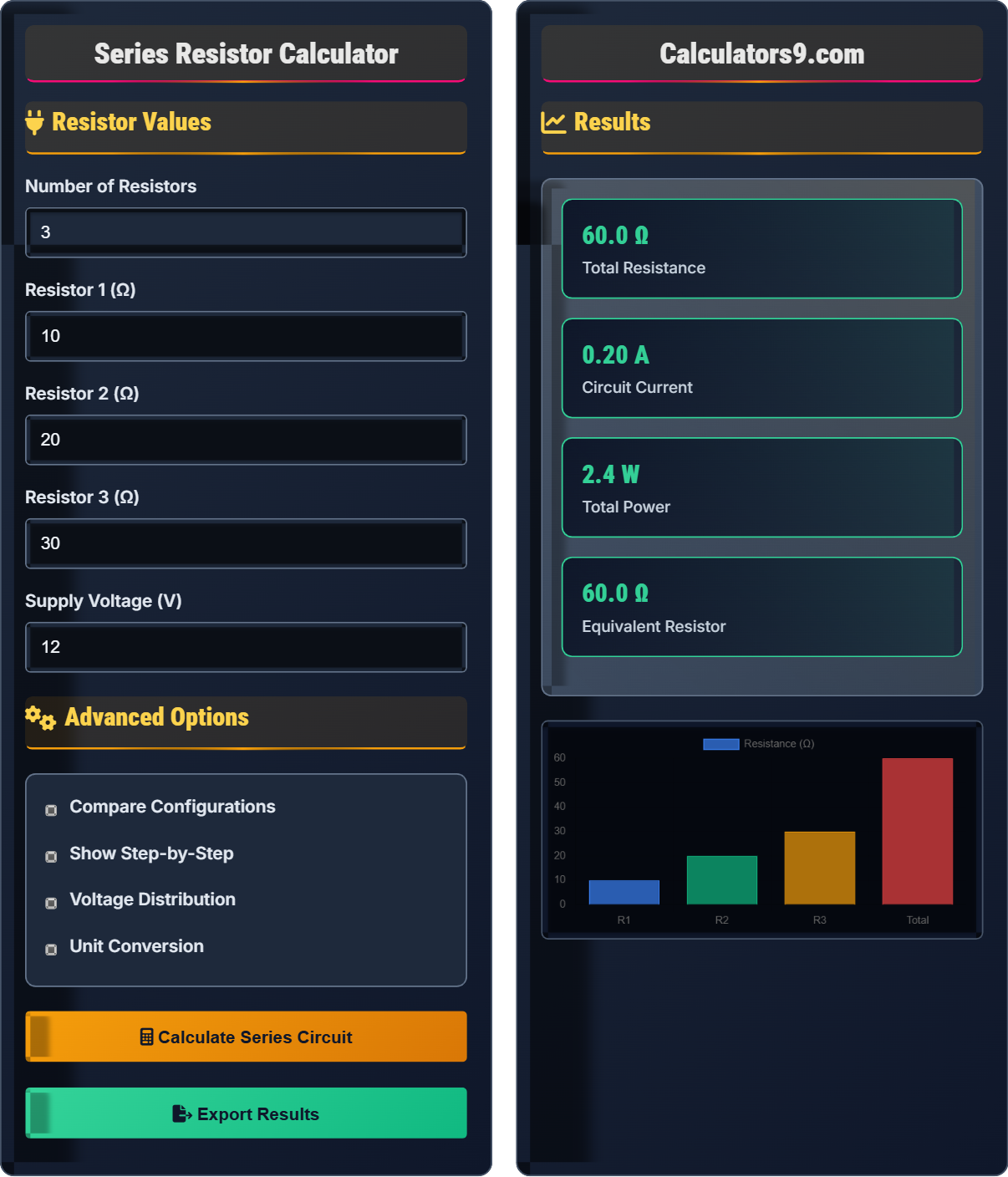

Resistor Values
Advanced Options
Results
| Parameter | Value | Unit |
|---|---|---|
| Total Resistance | 60.0 | Ω |
| Circuit Current | 0.2 | A |
| Total Power | 2.4 | W |
| Supply Voltage | 12.0 | V |
| Number of Resistors | 3 | - |
| Resistor | Resistance (Ω) | Voltage Drop (V) | Power (W) |
|---|---|---|---|
| R₁ | 10.0 | 2.0 | 0.4 |
| R₂ | 20.0 | 4.0 | 0.8 |
| R₃ | 30.0 | 6.0 | 1.2 |
| Configuration | Resistors | Total R (Ω) | Current (A) | Power (W) |
|---|---|---|---|---|
| Config 1 | 3 | 60.0 | 0.2 | 2.4 |
| Config 2 | 2 | 40.0 | 0.3 | 3.6 |
Series Resistor Fundamentals
In a series circuit, resistors are connected end-to-end forming a single path for current flow. The same current flows through each resistor, but the voltage is divided among the resistors according to their resistance values. The total resistance is the sum of all individual resistances.
The fundamental formulas for series circuits are:
\(I_{total} = I_1 = I_2 = I_3 = ... = I_n\)
\(V_{total} = V_1 + V_2 + V_3 + ... + V_n\)
Where:
- \(R_{total}\) = total resistance (Ω)
- \(I_{total}\) = total current (A)
- \(V_{total}\) = total voltage (V)
- \(R_i, I_i, V_i\) = individual resistor values
Series resistor circuits are essential in numerous fields:
- Electronics: Voltage dividers, pull-up/pull-down resistors
- Power Systems: Current limiting, voltage regulation
- Instrumentation: Sensor circuits, measurement devices
- LED Circuits: Current limiting for LED arrays
- Christmas lights connected in series
- Voltage divider circuits in sensors
- LED strings with current limiting resistors
- Series resistors for motor speed control
Series Circuit Concepts
Series circuit: Resistors connected in single path allowing same current through all.
\(R_{total} = R_1 + R_2 + R_3 + ... + R_n\)
Where R_total = sum of all resistances in series.
- Current same through all resistors
- Voltage divides proportionally
- Total R > any individual R
Applications
Voltage across each resistor: Vᵢ = I × Rᵢ
- Calculate total resistance
- Determine circuit current
- Calculate individual voltage drops
- Verify total voltage equals sum of drops
- Power dissipation adds up
- One failure breaks circuit
- Higher resistance = higher voltage drop
- Current limited by total resistance
Series Resistor Learning Quiz
In a series circuit with multiple resistors, what happens to the current through each resistor?
The answer is B) Current is the same through all resistors. In a series circuit, there is only one path for current to flow, so the same current must pass through each resistor. This is a fundamental characteristic of series circuits. The current entering the first resistor equals the current exiting the last resistor.
This question tests the fundamental understanding of series circuits. Because there's only one path for electrons to flow, the same current flows through each component. This is unlike parallel circuits where current splits among branches. This concept is crucial for analyzing series circuits and understanding voltage division.
Series Circuit: Components connected in single path
Current: Flow of electric charge
Path: Route for current flow
• I_total = I₁ = I₂ = I₃ (same current)
• Current cannot split in series
• Same electrons flow through all components
• Remember: "Same current, different voltages"
• Think of current like water in a single pipe
• Assuming current splits in series (that's parallel)
• Thinking current gets "used up" by resistors
Three resistors (R₁=5Ω, R₂=10Ω, R₃=15Ω) are connected in series to a 12V power supply. Calculate the total resistance, circuit current, voltage drop across each resistor, and power dissipated by each resistor.
Step 1: Calculate total resistance
R_total = R₁ + R₂ + R₃ = 5 + 10 + 15 = 30Ω
Step 2: Calculate circuit current using Ohm's Law
I = V_total / R_total = 12V / 30Ω = 0.4A
Step 3: Calculate voltage drop across each resistor
V₁ = I × R₁ = 0.4A × 5Ω = 2V
V₂ = I × R₂ = 0.4A × 10Ω = 4V
V₃ = I × R₃ = 0.4A × 15Ω = 6V
Step 4: Calculate power dissipated by each resistor
P₁ = I² × R₁ = (0.4)² × 5 = 0.8W
P₂ = I² × R₂ = (0.4)² × 10 = 1.6W
P₃ = I² × R₃ = (0.4)² × 15 = 2.4W
Verification: V_total = 2V + 4V + 6V = 12V ✓
The total resistance is 30Ω, circuit current is 0.4A, voltage drops are 2V, 4V, and 6V, and power dissipation is 0.8W, 1.6W, and 2.4W respectively.
This problem demonstrates the systematic approach to analyzing series circuits. The voltage divides proportionally to the resistance values (larger resistor = larger voltage drop). The power dissipated by each resistor depends on both current and resistance (P = I²R). The sum of voltage drops equals the supply voltage, confirming Kirchhoff's Voltage Law.
Voltage Drop: Voltage across a component
Power Dissipation: Energy converted to heat
Kirchhoff's Law: Sum of voltages around loop = 0
• R_total = sum of individual resistances
• I_same throughout series circuit
• V_total = sum of voltage drops
• Use Ohm's Law (V=IR) for individual components
• Verify with KVL: sum of drops = supply voltage
• Larger resistor gets larger voltage drop
• Forgetting that current is same through all resistors
• Adding currents instead of resistances
• Not verifying voltage drops sum to supply voltage
FAQ
Q: What happens if one resistor in a series circuit fails open?
A: In a series circuit, if any resistor fails open (becomes infinite resistance), the entire circuit stops conducting current. This is because there's only one path for current flow, and an open circuit breaks that path. All other resistors in the series will have zero voltage across them, and the total current becomes zero.
This is a major disadvantage of series circuits compared to parallel circuits. In a parallel circuit, if one branch opens, current can still flow through the other branches. This is why household wiring uses parallel connections rather than series connections.
For example, in old Christmas light strings wired in series, if one bulb burned out (open circuit), all the other bulbs would go out as well.
Q: How do series resistor calculations apply to real-world engineering problems?
Can you provide examples of how these concepts are used in practice?
A: Series resistor circuits are fundamental in electrical engineering applications:
- Voltage Dividers: Creating reference voltages for ADCs, sensor interfaces
- Current Limiting: Protecting LEDs, transistors, and sensitive components
- Signal Conditioning: Impedance matching, filtering circuits
- Power Control: Controlling heating elements, motor speed
For example, when designing an LED driver circuit, engineers use series resistors to limit current to safe levels. If an LED has a forward voltage of 2V and needs 20mA of current from a 5V supply, the series resistor value would be (5V - 2V) / 0.02A = 150Ω. The power rating of the resistor must also be considered: P = I²R = (0.02)² × 150 = 0.06W, so a 1/8W or 1/4W resistor would be adequate.
