Pressure Calculator
Force-Area • Fluid Mechanics • Thermodynamics
Pressure Formula:
Show the calculator\( P = \frac{F}{A} \)
Where:
- \( P \) = Pressure (Pascals)
- \( F \) = Force (Newtons)
- \( A \) = Area (square meters)
This fundamental equation shows how pressure depends on force and area.
Fluid Pressure:
\( P = \rho gh \)
Example: 100N force on 0.01m² area:
\( P = \frac{100}{0.01} = 10,000 \text{ Pa} \)
Thus, the pressure is 10,000 Pascals.

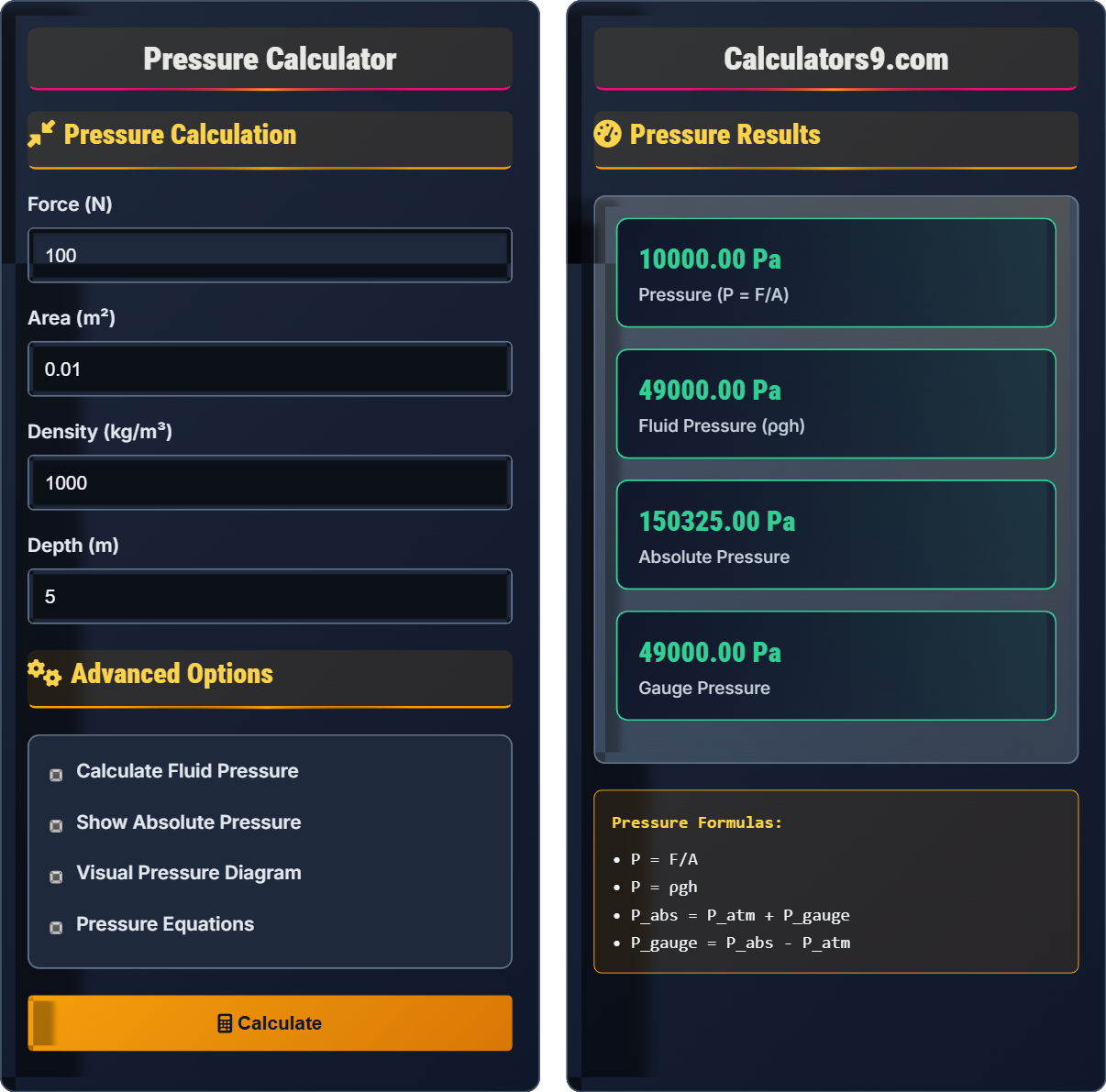

Pressure Calculation
Advanced Options
Pressure Results
Comprehensive Pressure Physics Guide
Pressure is defined as the force applied perpendicularly to the surface of an object per unit area. It is a scalar quantity measured in Pascals (Pa) and is fundamental in understanding fluid mechanics, thermodynamics, and structural engineering. Pressure acts equally in all directions in a fluid at rest, as described by Pascal's principle.
The fundamental pressure equations:
Pressure calculations are essential in various fields:
- Hydraulics: Hydraulic systems and brake systems
- Aviation: Altitude pressure measurements
- Medical: Blood pressure monitoring
- Weather: Atmospheric pressure and weather prediction
- Pascal's Principle: Pressure transmitted equally
- Bernoulli's Principle: Pressure-velocity relationship
- Hydrostatic Equilibrium: Pressure balances weight
- Boyle's Law: Pressure-volume relationship
Pressure Concepts
Force per unit area: P = F/A
P = ρgh (depends on depth and density)
- Pressure is scalar (no direction)
- Acts equally in all directions
- Depends on depth in fluids
Pressure Calculations
Absolute = Gauge + Atmospheric pressure
- Identify force and area
- Ensure consistent units
- Calculate P = F/A
- Consider atmospheric pressure if needed
- P ∝ F (at constant area)
- P ∝ 1/A (at constant force)
- P increases with depth in fluids
Physics Pressure Learning Quiz
Which of the following statements about pressure is correct?
The answer is C) Pressure is inversely proportional to area. From the pressure formula P = F/A, when force is constant, pressure is inversely proportional to area. If area increases, pressure decreases, and vice versa. This is why a sharp knife cuts more easily than a dull one - the same force applied over a smaller area creates higher pressure.
This question tests understanding of the mathematical relationship in the pressure formula. Since P = F/A, when F is held constant, P and A are inversely related. This means P × A = constant (when F is constant). This inverse relationship is fundamental to understanding many real-world applications like hydraulic systems, cutting tools, and pressure vessels.
Pressure: Force per unit area
Inverse Proportion: When one quantity increases, the other decreases
Scalar Quantity: Has magnitude but no direction
• P = F/A (pressure formula)
• P ∝ F (at constant area)
• P ∝ 1/A (at constant force)
• Remember: P = F/A
• Smaller area = higher pressure (same force)
• Larger area = lower pressure (same force)
• Thinking pressure increases with area
• Confusing direct and inverse relationships
• Forgetting to consider units
A scuba diver descends to a depth of 20 meters in seawater (density = 1025 kg/m³). Calculate: a) the gauge pressure at this depth, b) the absolute pressure (assuming atmospheric pressure is 101,325 Pa), c) the force experienced by a 0.02 m² area of the diver's suit, and d) explain why divers need special equipment at great depths.
a) Gauge pressure: P_gauge = ρgh = 1025 kg/m³ × 9.8 m/s² × 20 m = 200,900 Pa
b) Absolute pressure: P_abs = P_atm + P_gauge = 101,325 Pa + 200,900 Pa = 302,225 Pa
c) Force on suit: Using P = F/A, we get F = P × A = 302,225 Pa × 0.02 m² = 6,044.5 N
d) Equipment necessity: At 302 kPa, the pressure is about 3 times atmospheric pressure. Without special equipment, the high pressure would compress the diver's lungs and body tissues, causing serious injury or death. Special suits and breathing apparatus are needed to equalize internal and external pressures.
This problem combines multiple pressure concepts: fluid pressure calculation, absolute vs gauge pressure, and the force-pressure relationship. The key insight is that pressure increases linearly with depth in a fluid. The diver example illustrates the practical importance of understanding pressure in real-world applications. The large force calculation demonstrates why deep-sea exploration requires specialized equipment.
Gauge Pressure: Pressure relative to atmosphere
Absolute Pressure: Pressure relative to vacuum
Hydrostatic Pressure: Pressure due to fluid weight
• P_fluid = ρgh
• P_absolute = P_gauge + P_atmospheric
• F = P × A
• Always distinguish between gauge and absolute pressure
• Depth is measured from the surface
• Atmospheric pressure is ~101,325 Pa
• Forgetting to include atmospheric pressure
• Using depth from bottom instead of surface
• Confusing density with mass
FAQ
Q: What's the difference between gauge pressure and absolute pressure? Why do we need both?
A: Gauge pressure is measured relative to atmospheric pressure, while absolute pressure is measured relative to a perfect vacuum (zero pressure). The relationship is: P_abs = P_gauge + P_atm.
We need both because different applications are more conveniently expressed in one or the other. Tire pressure gauges read gauge pressure (0 psi when open to atmosphere), while thermodynamic calculations typically require absolute pressure. Weather reports use absolute pressure, while blood pressure readings are gauge pressure.
Q: How does pressure behave in a closed container versus an open system? What role does Pascal's principle play?
A: Pascal's principle states that pressure applied to a confined fluid is transmitted equally in all directions. In a closed system, this means pressure is uniform throughout the fluid. This principle is the basis for hydraulic systems.
In an open system, pressure varies with depth according to P = ρgh. Pascal's principle is crucial for hydraulic devices like car brakes, hydraulic lifts, and jacks, where a small force applied over a small area creates a large force over a larger area: F₁/A₁ = F₂/A₂.
